Audio/Video Formats

One of the exciting results of the movement to broadband Internet connectivity is the growing reliance on sound and movies for delivering Web page content. High-speed network connections are capable of transmitting data at several megabytes per second which is a crucial need for delivering large audio and video files to the desktop.

Transmission Methods - TOP

There are two ways to receive audio and video files at your browser. One method is by downloading the file from a Web server. In this case, there are delays while the file is being transmitted to your browser. Despite the delay in downloading, modern browsers can begin playing the media before it all arrives at your desktop through progressive download methods. That is, playback takes place at the same time the file is being downloaded. After the file is downloaded, it is available on your PC for rapid reloading and replaying. Downloaded files can be saved to your desktop and thereafter accessed and played locally.

The second way of receiving multimedia content is through streaming methods. If audio and video files are hosted on a "media server" then that machine can transmit files as a continuous stream. It is not necessary to wait for a download to finish before playback begins. Usually there are a few seconds of delay while initial content is transmitted to the PC; thereafter, the browser receives a continuous stream of sound and pictures. While the transmitted portion of the file is being played, the next portion of the stream is being transmitted to and buffered (temporarily saved) on the PC to await playback. This interleaving of transmission and playback provides a continuous stream of multimedia content. Often, media files can be streamed at a rate that matches the bandwidth at which you are connected to the Internet. Streamed files are not downloaded; therefore, you do not receive a copy of the file.

Streaming methods are also used for live broadcasts. There are a few seconds of delay for initial transmissions to be received and buffered at the PC. While playback of the buffered content continues, the next portion of content is transmitted to and buffered on the PC to await playback. This ability of your computer to play buffered content at the same time that it receives and buffers transmissions produces a continuous stream of audio and video output.

Media Playback - TOP

In order to receive audio and video files, live media streams, and other types of media files, you must have the appropriate plug-in or helper application installed on your computer. When the browser loads a Web page that contains multimedia content, it will search for the appropriate plug-in configured to display the file type. If it cannot find the plug-in on the user's computer, the browser will prompt the user to download the file. The most common types of browser plug-ins include:

• Windows Media Player - Displays Windows Media Player for streaming audio and video
• Apple Quicktime Player - Displays the Apple Quicktime Player for audio and video
• RealPlayer - Displays the RealPlayer for streaming audio and video
• Adobe Flash Player - Displays .swf format files. These can contain audio, video, and iteractivity
• Adobe Shockwave Player - Displays high-performance media created using Adobe Director
• Adobe Reader - Used to Display documents in .pdf format
• Java Runtime Environment - Used to run applications utilizing Java technology.

The player or application needed depends on the formats in which media content is provided.

The following sections include use of Windows Media player; however, Apple QuickTime or RealPlayer can also be used. You should have the latest version installed. When using Windows Media Player, there are two ways to provide Web access to media files. You can create links to the files or you can embed the media within a Web page.

Linking to Media

You can link to media files just like you link to Web pages, with an <a> tag. In this case, the href attribute gives the URL to the file that is located either locally on the PC or remotely on a Web server. When linking to a media file, either a Media Player opens externally and plays the media file or a separate browser tab opens and plays the file.

Walking in a Winter Wonderland - MGA Chamber Singers

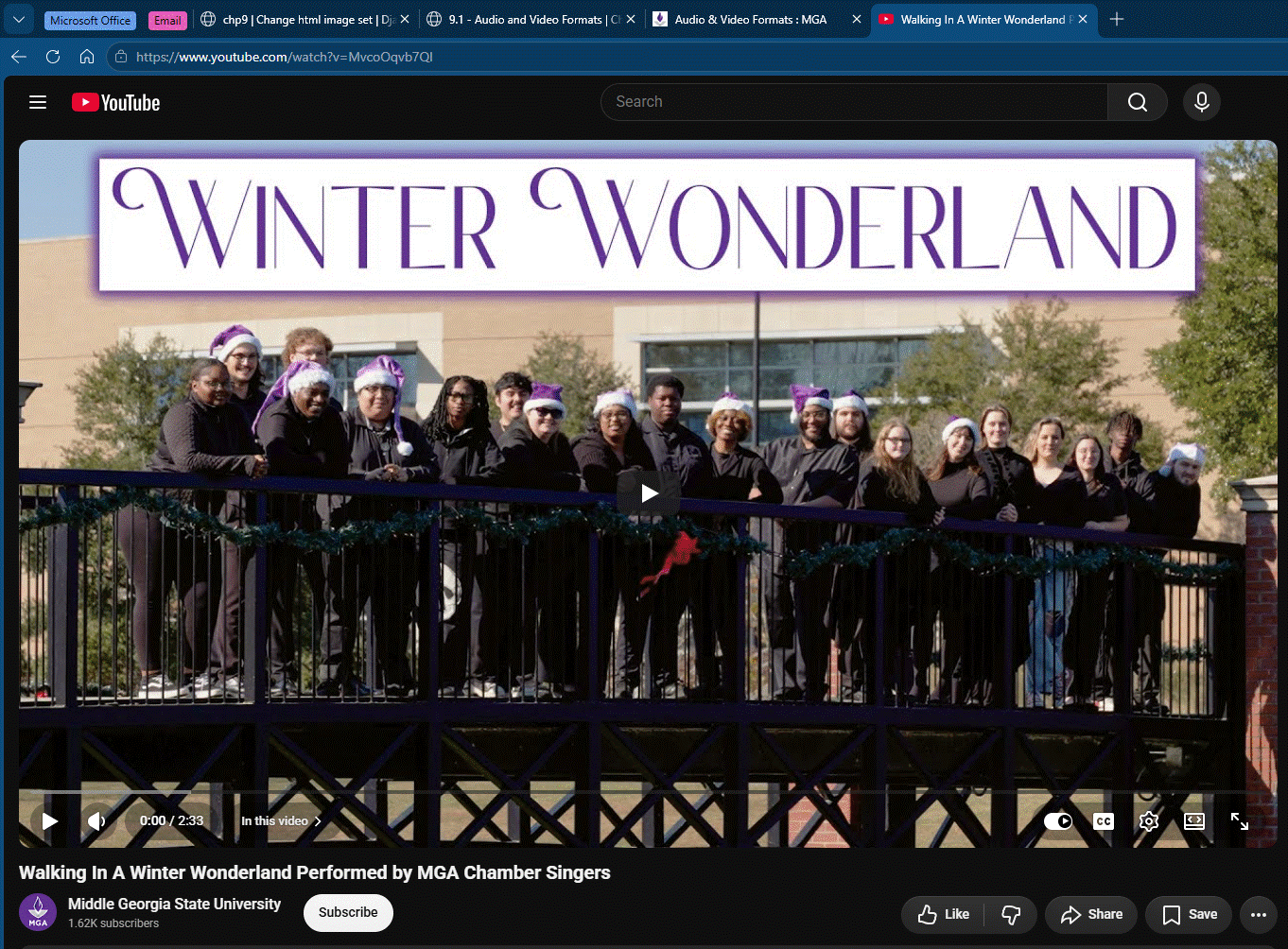

Figure 9-1.  A separate browser window opens and plays a media file.

Embedding Media - TOP

The Media Player can be embedded on the Web page rather than opening in a separate window. In this case, the player is an element of the page, permitting close integration of sounds and pictures with other content on the page. When the player is embedded, the media plays only while viewing the page and stops when another page is accessed.

Figure 9-2. Embedding a video on a Web page.

The way in which access is provided to media files depends to a large extent on the capabilities of your Web clients. For browsers with slower Internet connections, presenting links to media files along with relevant information about file sizes gives the user the choice about whether to proceed with a download. An embedded player set for automatic playback could cause lengthy delays and an unhappy experience for the user.

For Web clients with broadband connections, the choice has more to do with page design considerations. If you anticipate continued browsing of your site with background or external playback, then you can provide links to media files. On the other hand, if playback is integral to other content on your page, then you will likely embed the media, and start playback when the page is opened.

Audio Formats - TOP

Several different sound formats are used for Web playback. They are characterized by the brands of computer systems they are designed to serve as well as by the sound quality that is provided. Sound quality depends on the type of sound compression technique used to digitize the file. This compression method is encapsulated within a sound codex (compression / decompression algorithm) that reduces file sizes by removing unnecessary signals or collapsing redundant or repeating signals. The most popular sound formats are briefly described in the following table.

Figure 9-3. Sound file formats.

Video Formats - TOP

As with audio formats, video file formats are characterized by the brands of computer systems they are designed to serve, and by the video quality that is provided. Video quality also depends on the type of codex used to digitize the file. The most popular video formats are summarized in the following table.

Figure 9-4. Video file formats.

TOP | NEXT: Playing Audio

Playing Video

There are no significant differences between accessing and playing video files versus audio files. Video files can be downloaded from the Web for local playback. Files in AVI and MPG formats are the most common types for downloads. Video files in WMV format can be streamed from a media server. These can be live broadcasts or digitized files for on-demand retrieval.

Linking and Embedding Video Files - TOP

A video file is downloaded by creating an <a> link with the URL to the file. The file is downloaded and opened in the external Media Player in the same fashion as for audio files. A link connects to a WMV video file appearing in the same directory as this Web page. When the link is clicked, the file would open in the external Media Player. The exact manner in which the Media Player appears on your desktop depends on how it is configured.

An example of how this would be coded is shown below. The href attribute of the  <a>  tags surrounding both the graphic image and text are URLs for the local WMV video file.

    <a href="casablanca.wmv"><img src="casablanca.gif" alt="Casablanca"/></a>
    <a href="casablanca.wmv">Casablanca.wmv (484 KB)</a>

Listing 9-8. Code to link to video file.

Accessing and Embedding Video Streams

In modern web development, adding video to a webpage is straightforward and no longer requires external plugins like Flash or Windows Media Player. Depending on where the video is hosted, you will generally use one of two methods: embedding a third-party player (like YouTube or Vimeo) using an <iframe>, or hosting the video yourself and using the native HTML5 <video> element.

Embedding Third-Party Video Streams

The most common way to display streaming video is by linking to content hosted on dedicated video platforms. These services handle the complex video compression and streaming protocols for you.

Instead of hunting for a direct media URL in a player's properties, modern platforms provide an "Embed" option (usually found under the "Share" button). This generates an <iframe> tag that you can copy and paste directly into your HTML.

Figure 9-10 Embedding a streamed YouTube video.

<iframe
    width="560"
    height="315"
    src="https://www.youtube.com/embed/VsvaFxkXrbg"
    title="YouTube video player"
    frameborder="0"
    allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share"
    allowfullscreen>
</iframe>

Listing 9-11. Code to embed a third-party streaming video.

Note on Permissions: Many web-based video files have viewing restrictions or copyright protections. Always ensure you have the right to embed a video. If a video creator disables embedding, the <iframe> will display a message directing the user to watch it on the host platform instead. Additionally, URLs can change or videos can be taken down, resulting in broken links over time.

Using the HTML5 <video> Element

If you have direct access to the video file (e.g., an .mp4 or .webm file) and are hosting it on your own server, you should use the native HTML5 <video> element. This tells the browser to use its built-in media player, completely eliminating the need for third-party plugins.

To ensure your video plays across all browsers, it is best practice to provide multiple video formats using the <source> tag, as well as fallback text for older browsers.

The controls attribute is particularly important, as it automatically provides the user with play, pause, and volume buttons.

Live Video Streams (HLS and DASH)

Live streaming has evolved significantly. Today, live streams are typically delivered using protocols like HLS (HTTP Live Streaming) or MPEG-DASH.

While Apple's Safari browser can play HLS streams natively through the standard <video> tag, most other browsers require a lightweight JavaScript library (such as hls.js or video.js) to interpret the live stream data. If you are integrating live broadcasts, you will usually embed an <iframe> from a live-streaming provider (like Twitch or YouTube Live) or use one of these JavaScript libraries alongside the <video> element to handle the feed.

TOP | NEXT: Third Party Content

Embedding Third Party Content

In some cases, it is necessary to embed third party content such as external HTML pages or multimedia content into the current page. This can be accomplished using the <iframe> tag.

The <iframe> is used to specify an inline frame or inline window. Inline frames are often used in online advertising. Inline frames serve as a window within the current page to display other content such as a second HTML page. The second page contains the content that is embedded within the current page. The <iframe> is also commonly used to embed Youtube videos.

The <iframe> tag is coded as follows:

    <iframe></iframe>

Listing 9-12. <iframe> tag

Note that a closing </iframe> tag is required even though it encloses nothing. You can additionally include any number of floating frames on a Web page.

The following table lists the attributes associated with the tag:

Figure 9-12. <iframe> attributes.

The example below demonstrates how to embed a Youtube video using the iframe.

    <iframe src="https://www.youtube.com/embed/MvcoOqvb7QI?si=K0-H5rNhnpeLtbtu" width="560" height="315">

Figure 9-13. Examples of embedding a YouTube video.

The src attribute identifies the page to load initially into the frame. The name attribute assigns a name to the iframe as a target for links. You do not necessarily need to target the frame with links. You may simply wish to display a single external document inside the frame. In which case, you need only to specify a URL in the src attribute of the unnamed frame.

Both the width and height attributes can be used to set the dimensions of the iframe. These dimensions can also be set using CSS.

HTML 5 includes the new sandbox attribute that can be used with the <iframe> tag. The sandbox attribute is used to restrict content that can appear in the iframe window. The sandbox is a useful security feature. When it is included with the <iframe> tag, it tells the browser to disallow features that might cause a security risk to the site and its users. When the attribute is present, it will do as follows:

• treat the content as being from a unique origin
• block form submission
• block script execution
• disable APIs
• prevent links from targeting other browsing contexts
• prevent content from using plugins (through <embed>, <object>, <applet>, or other)
• prevent the content to navigate its top-level browsing context
• block automatically triggered features (such as automatically playing a video or automatically focusing a form control)

TOP | NEXT: Chapter 10 - Creating Forms
